PE9000MS Series High-Flow Micro-Channel Hydrogen Purifier

PE9000MS Series High-Flow Micro-Channel Hydrogen Purifier

PE9000MS SERIES SPECIFICATIONS

Tool or Lab Wide Capacity

The PE9000MS Series h2 purifiers offers many unique features, such as easy-to-use one-button operation, compact design for large UPH flows, complete system control and monitoring with the integrated PLC with LCD touchscreen interface, immunity to power failure, and automatic leak check on shutdown. Temperatures, rate of rise, and a variety of other data are monitored to insure that your PE9000MS Series Micro-Channel Hydrogen Purifier operates safely and within precise guidelines.

Power+Energy’s Micro-Channel H2 Purifier is ideal for use with MOCVD reactors, as well as in laboratories, universities, and any other environment where ultra-pure hydrogen is required.

PE9000MS Series Process Specifications:

Hydrogen

• Flow Capacities: Models from 2 to 80m³/hr

• Maximum Inlet Pressure: 250 PSIG (1.72 MPa)

• Inlet H2 Purity: 99.95% typical

• Outlet H2 Temperature: 5-10 C° above inlet

• Outlet H2 Purity: 99.9999999%

• Total Impurities: < 1 ppb

N2 Purge

• Process:

• Startup + Shutdown

• 75-90 psig (0.5-.06 MPa)

Pneumatics

• Air or N2: 75-90 psig (0.5-.06 MPa)

Power Specifications:

200-240 VAC - 50/60 Hz

20 NM3/hr: 2.88 kW peak (Startup)
0.7 kW at Max. Flow
40 NM3/hr: 4.4 kW peak (Startup)
1.1 kW at Max. Flow

Mechanical Specifications:

Top panel tubing connection: 1/4" face seal fittings
Tubing/Cell Material: 316L Stainless Steel
UPH Tubing Finish: Electro-polished
UPH Cell Surface Finish: Micro-polished
Dimensions:
- Width: 21" (540 mm)
- Depth: 18" (458 mm)
- Height: 24" (626 mm)
Weight: Approx. 110 lbs. (50 kg)

Design Features:

PLC Controller for reliability and global parts access
Color touch-screen LCD for monitoring and control
Simple, automated startup and shutdown
Front-panel emergency-off (EMO) switch
Can use hydrogen or nitrogen purge during standby
Automatic recovery from short duration power outages
Software and ports for helium leak testing
Compact, cabinet designed for table, rack or wall mounting
Interface via LAN and dry contacts for relay interface

Standard:

All Power+Energy Hydrogen Purifiers Feature:

Advanced Micro-Channel Membrane Technology
Deliver 99.9999999% Ultra Pure Hydrogen from any hydrogen source
Exhaust Duct or Exhaust Fan
Cabinet mounted Hydrogen Detector
Rotameter for bleed gas flow control

Click to View PE9000MS Series Features

	Download the Spec Sheet for the PE9000MS Series :
		Power+Energy PE9000MS Series Specs (504KB PDF)

Click to View PE9000MS Series Features

Flow Curve:

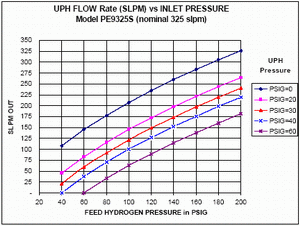

(Model PE9325S flow curve shown. Others available on request.)
