PE2100P Series Low-Flow Micro-Channel Hydrogen Purifier

PE2100P SERIES FEATURES

PE2100P Bench-Top Supply

PE2100P Bench-Top Supply

Click to View PE2100P Series Specifications

Power+Energy's PE2100P Series Micro-Channel Hydrogen Purifier provides a cost-effective, easy-to-use, and compact solution for ultra-pure hydrogen production. Our h2 purifiers have been designed to produce a continuous supply of low-cost ultra-pure hydrogen from commercial cylinders or an in-house source of h2. Efficiency is a top goal: The PE2100P Series hydrogen purifier provides nine-nines purity (only 1 ppb total impurities) at flow rates of up to 30 standard liters per minute (SLPM).

Supports the most demanding hydrogen purity requirements. These h2 purifiers are ideally suited for compound semiconductor and other advanced processes including LED, SiC and GaN devices, photovoltaics, fuel cells and related ultra-pure hydrogen needs.

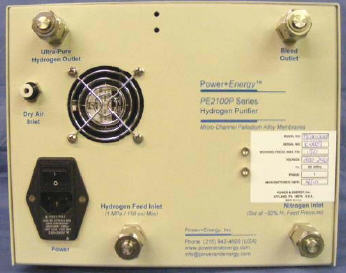

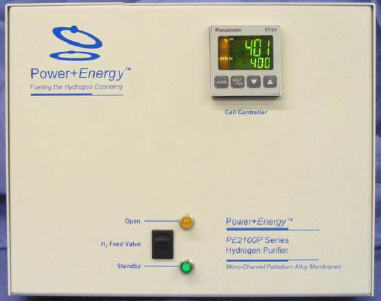

Power+Energy PE2100P Low-Flow Micro-Channel Hydrogen Purifier


	The Power+Energy PE2100P Series Micro-Channel H2 Purifier offers such unique features as a compact design and a PC board that constantly monitors the purifier's status, comparing temperatures, rate of rise, and other details to ensure that it operates safely and within precise guidelines. Each unit is helium-leak-tested during assembly, and is then bench-tested before shipping to ensure maximum reliability.

PE2100P Series: Bench-Top Supply

Low Flow System

Ideal for Laboratory Applications

Available Models:

Model

Output capacity at 150 PSIG inlet pressure (standard liters per minute)

Model PE2100PH

Model PE2100PK

Model PE2100PM

6 SLPM

14 SLPM

30 SLPM

PE2100P Design Features:

Produces nine-nines ultra-pure hydrogen
Proportional, differential, integrated temperature controller
Reliable P+E inside-feed palladium cell design
Lightweight, compact chassis
Easy to operate
Accelerated Life Testing and helium-leak testing ensure reliability
Immune to power failure

Advantages:

Ultra-Pure Hydrogen from any hydrogen source
Absolute Purity > 99.9999999%
Simple Operation
No regeneration or bed replacement necessary
Protects process from variations in supply

	Download the Spec Sheet for the PE2100P Series:
		Power+Energy PE2100P Series Specs (346KB PDF)

Standard:

All Power+Energy Hydrogen Purifiers Feature:

Advanced Micro-Channel Membrane Technology
Deliver 99.9999999% Ultra Pure Hydrogen from any hydrogen source

Click to View PE2100P Series Specifications

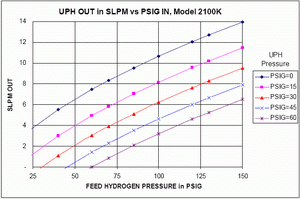

Flow Curves:

(Flow curves shown for Model PE2100PK. Others available on request.)

(Click for Full Size)
