PE9000MZ Series High-Flow Micro-Channel Hydrogen Purifier

PE9000MZ SERIES FEATURES

Fab Wide Capacity

Fab Wide Capacity

Click to View PE9000MZ Series Specifications

Power+Energy's PE9000MZ Series Micro-Channel Hydrogen Purifier provides a cost-effective and convenient solution for obtaining ultra-pure hydrogen. The PE9000MZ Series is designed to produce a continuous supply of low-cost, ultra-pure hydrogen from any high pressure source of hydrogen of 97% or better purity. This Micro-Channel h2 purifier provides hydrogen purification levels of nine-nines (no more than 1 part per billion total impurities), with continuous operation at flow rates ranging from 5 to 320 NM³/hr.

Supports the most demanding hydrogen purity requirements. These h2 purifiers are ideally suited for compound semiconductor and other advanced processes including LED, SiC and GaN devices, photovoltaics, fuel cells and related ultra-pure hydrogen needs.

P+E PE9000MZ Micro-Channel Hydrogen Purifier

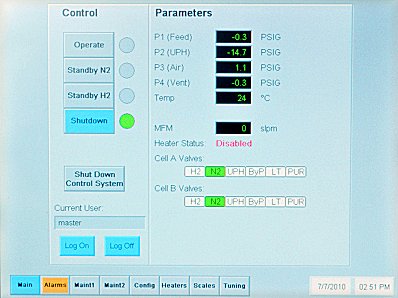

P+E PE9000MZ PLC Touchscreen Inerface

PE9000MZ Pressurized Inner Cabinet

The Electrical Cabinet is isolated from the hydrogen processing cabinet and features nitrogen Z-purge to meet class 1 div 2 code requirements. Remote monitoring and control is available through an Ethernet connection.

The PE9000MZ Series offers many unique features, such as easy-to-use one-button operation, compact design for large UPH flows, complete system control and monitoring with the integrated PLC Controller, protection against power failure, and automatic leak check on shutdown. Temperatures, rate of rise, and a variety of other data are monitored to insure that your PE9000MZ Series Micro-Channel Hydrogen Purifier operates safely and within precise guidelines.

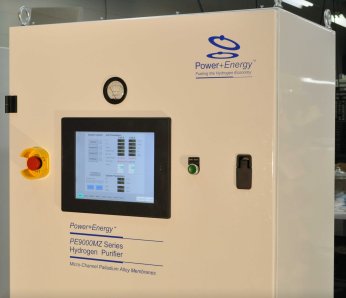

The Power+Energy PE9000MZ Series features a PLC industrial controller with an intuitive touch-screen interface

The Power+Energy PE9000MZ Series features a PLC industrial controller with an intuitive touch-screen interface, simplifying use and adding to Power+Energy's high reliability and global parts availability. The PE9000MZ Series can also be controlled over a LAN network via a computer interface that's just as simple to use as the touch-screen, and basic operational commands and status checks are available through dry relay contact connections.


	Power+Energy's turnkey system offers diagnostic functions and dedicated connections for leak detection and troubleshooting. Power+Energy helium-leak tests every unit during assembly. We then bench-test and performance-certify each h2 purifier before we ship it, ensuring that your hydrogen purifier is ready to go as soon as it arrives.

PE9000MZ Design Features:

Class I Div. 2 Compliant
Rugged High Reliability Design
Compact Cabinet Design
- N2 Purged Control Cabinet
Power Failure Protection including UPS for controls
Vented process cabinet
Continuous monitoring for H2 and exhaust flow
Remote Monitoring and Control via Ethernet

View PE9000MZ Specifications

Advantages:

Ultra-Pure Hydrogen from any hydrogen source
Absolute Purity > 99.9999999%
PPT levels of O₂ + H₂O for LED's
PPT levels of N₂ for PV and Sic
Protects from variation in supply purity
No regeneration or bed replacement necessary

	Download the Spec Sheet for the PE9000MZ Series:
		Power+Energy PE9000MZ Series Specs (414KB PDF)

Standard:

All Power+Energy Hydrogen Purifiers Feature:

Advanced Micro-Channel Membrane Technology
Deliver 99.9999999% Ultra Pure Hydrogen from any hydrogen source
Exhaust Duct or Cabinet mounted Polytron 2XP Hydrogen Detector
Mass Flow Controllers for bleed gas flow control

Options:

Inlet Mass Flow Meter
Light Tower Status Indicator
Inlet Hydrogen Bypass Valve

View PE9000MZ Specifications
