PE9000MZ Series 2.0 High-Flow Micro-Channel H2 Purifier

PE9000MZ SERIES 2.0 FEATURES

PE9000MZ Series 2.0 Second Generation H2 Purifier

• For flow rates from 2 NM3/hr -176 NM3/hr
• PLC Controls with Touch Screen Interface
• Remote monitoring + control via USB and dry relay contacts
• Class 1 Div 2 with Z-purge system, CE Marked for Europe
• • Separate purge for controls and AC power supply

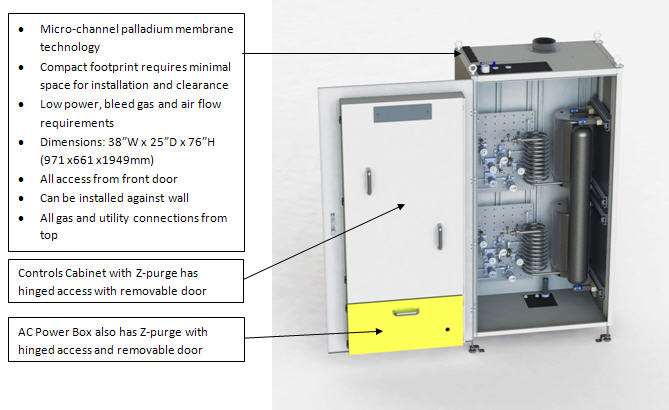

  • Open process cabinet while maintaining Z-purge
• One or two purifier cells, operated independently
• Planar layout of gas panel for easy access and service
• Additional cabinet space to accommodate options:
• • Inlet H2 mass flow meter
  • Inlet H2 regulator
  • Manually actuated pneumatic bypass valve
  • Catalyst pretreatment for Oxygen or Sulfur removal
• Cells (and opt. catalyst) mounted on slides for easy access
• Hydrogen Detector can be tested with cabinet door closed
