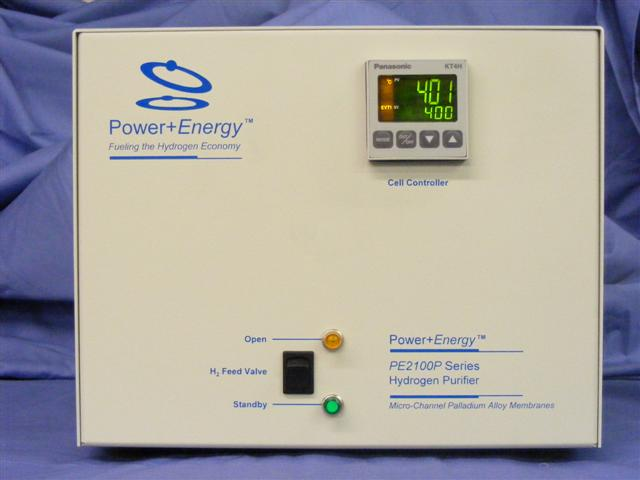

Power+Energy PE2100P Series Low-Flow Micro-Channel Hydrogen Purifier



Download the Spec Sheet for the PE2100P Series :
  Download the Spec Sheet for the PE2100P Series (83KB PDF) Power+Energy PE2100P Series Specs (83KB PDF)






PE2100P Series: Bench-Top Supply

Low Flow System

Ideal for Laboratory Applications

Design Features:

  • Produces nine-nines ultra-pure hydrogen
  • Proportional, differential, integrated temperature controller
  • Reliable P+E inside-feed palladium cell design
  • Lightweight, compact chassis
  • Easy to operate
  • Accelerated Life Testing and helium-leak testing ensure reliability
  •  Immune to power failure

Standard:

           All Power+Energy Hydrogen Purifiers Feature:

  • Advanced Micro-Channel Membrane Technology

  • Deliver 99.9999999% Ultra Pure Hydrogen from any hydrogen source
  • Support the most demanding purity requirements
  • Ideally suited for compound semiconductor and other advanced processes including LED, SiC GaN and Photovoltaic Fuel Cells and related hydrogen needs.




Power+Energy - 'Fueling the Hydrogen Economy'







PE2100P Series Low-Flow Micro-Channel Hydrogen Purifier

The Power+Energy PE2100P SeriesMicro-Channel Hydrogen Purifier offers such unique features as a compact design and a PC board that constantly monitors the purifier's status, comparing temperatures, rate of rise, and other details to ensure that it operates safely and within precise guidelines. Each unit is helium-leak-tested three times during assembly, and is then bench-tested before shipping to ensure maximum reliability.

Power+Energy's Micro-Channel Hydrogen Purifiers are ideal for use in small MOCVD reactors, laboratories, universities, and anywhere else ultra-pure hydrogen is needed.


Process Specifications:

Hydrogen

• Flow Capacities:                                 Models from 5 to 30 slpm

• Maximum Inlet Pressure:              200 PSIG (1.38 MPa)

• Inlet H2 Purity:                                  99.95% typical

• Outlet H2 Temperature:                  5-10 C° above inlet

• Outlet H2 Purity:                               99.9999999%

• Total Impurities:                                < 1 ppb

N2 Purge

• Process:

• Startup + Shutdown

• 75-90 psig (0.5-.06 MPa)

• N2 Flow ~ 1% of H2 flow

Pneumatics

• Air or N2:                                      75-90 psig (0.5-.06 MPa)

Power Specifications:

100-240 VAC - 50/60 Hz

Mechanical Specifications:

              • Top panel tubing connections:          1/4" face seal fittings

              • Tubing/cell material:                            316L stainless steel

              • Finish on all UPH tubing:                    Electro-polished

              • Finish on all UPH cell surfaces:        Micro-polished

              • Dimensions:

• Width:                                  10 " (254 mm)

• Depth:                                 10 " (254 mm)

• Height:                                 8 " (203 mm)

              • Weight:                                             Approx. 15 lbs (7 kg)

Flow Curves:

Flow curves shown for Model PE2100PK. Others available on request.

Flow curves shown for Model PE2100K. Click for Larger View.

(Click for full size)
